BAIXIANG MOTOR CO.,LTD.
ZD1060-TM-Ⅱ/ZD2060-TM-Ⅱ
Rated Volt：12V/24V
Brake Torque：50N.m
Working Torque：8.5N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-800mm Customized
Wiper blade spec：300/350/400/450/500/550/600/650/700/800mm
Wiping angle：40°-80° Customized
Noise：≤65dB(A)
Application：Apply for construction machinery,special vehicles,trucks
Brake Torque：50N.m
Working Torque：8.5N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-800mm Customized
Wiper blade spec：300/350/400/450/500/550/600/650/700/800mm
Wiping angle：40°-80° Customized
Noise：≤65dB(A)
Application：Apply for construction machinery,special vehicles,trucks
-

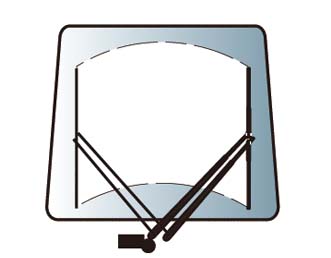

- Parellel movement
| Technical data | |
| Model | ZD1060/ZD2060 |
| Rated Volt. | 12V/24V |
| Brake Torque | 50N.m |
| Working Torque | 8.5N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 300-800mm Customized |
| Wiper blade spec. | 300/350/400/450/500/550/600/650/700/800mm |
| Wiping angle | 40°-80° Customized |
| Noise | ≤65dB(A) |
| Application | Apply for construction machinery,special vehicles,trucks |
