BAIXIANG MOTOR CO.,LTD.
ZD1233A(A)/ZD2233A(A)
Rated Volt：12V/24V
Brake Torque：12N.m
Working Torque：3.5N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min

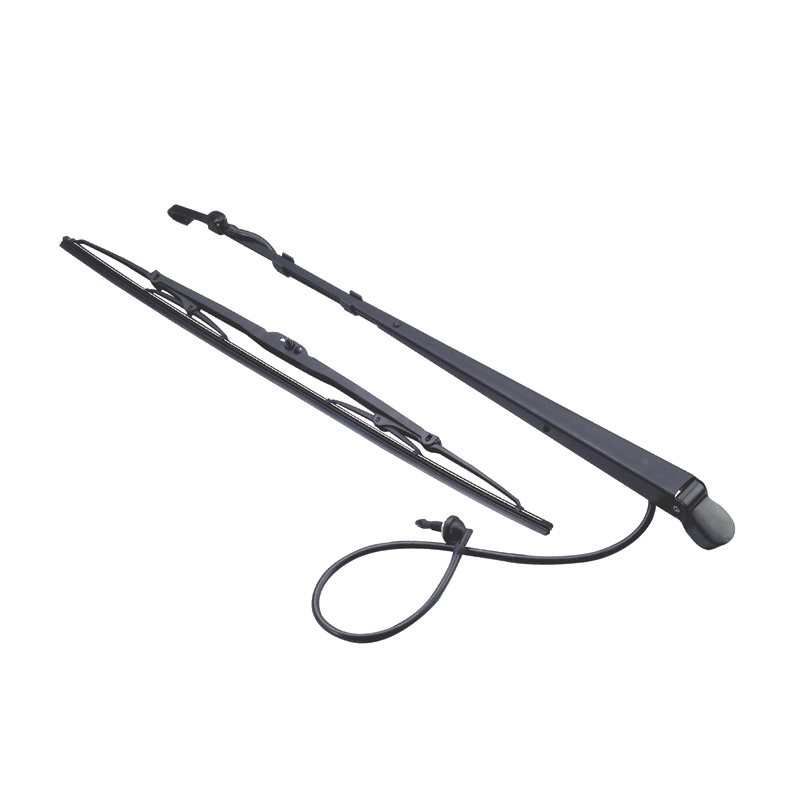

Wiper arm spec：300-500mm Customized
Wiper blade spec：300/350/400/450/500mm
Wiping angle：40°-110° Customized
Noise：≤60dB(A)
Application：Apply for construction machinery,special vehicles,trucks
Brake Torque：12N.m
Working Torque：3.5N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-500mm Customized
Wiper blade spec：300/350/400/450/500mm
Wiping angle：40°-110° Customized
Noise：≤60dB(A)
Application：Apply for construction machinery,special vehicles,trucks
-

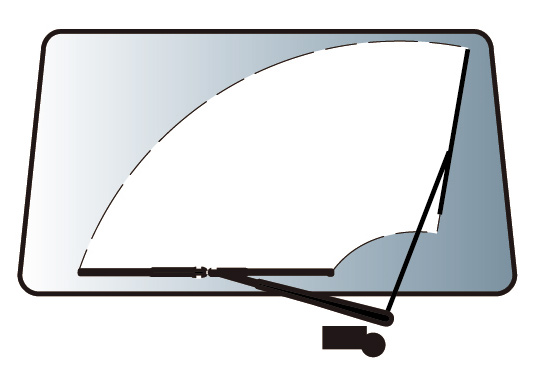

- Sectorial I
-

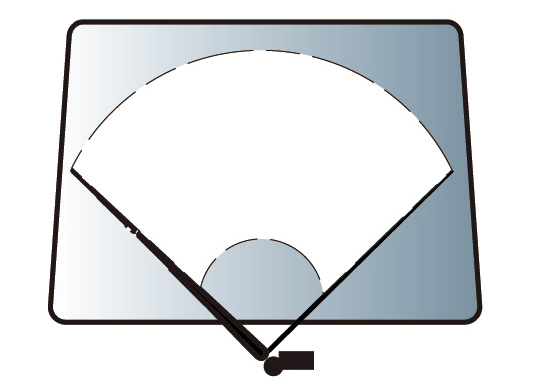

- Sectorial II
| Technical data | |
| Model | ZD1233A(A)/ZD2233A(A) |
| Rated Volt. | 12V/24V |
| Brake Torque | 12N.m |
| Working Torque | 3.5N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 300-500mm Customized |
| Wiper blade spec. | 300/350/400/450/500mm |
| Wiping angle | 40°-110°Customized |
| Noise | ≤60dB(A) |
| Application | Apply for construction machinery,special vehicles,trucks |
