BAIXIANG MOTOR CO.,LTD.
ZD1231/ZD2231
Rated Volt：12V/24V
Brake Torque：8N.m
Working Torque：1.3N.m
No-load speed：37±3r/min

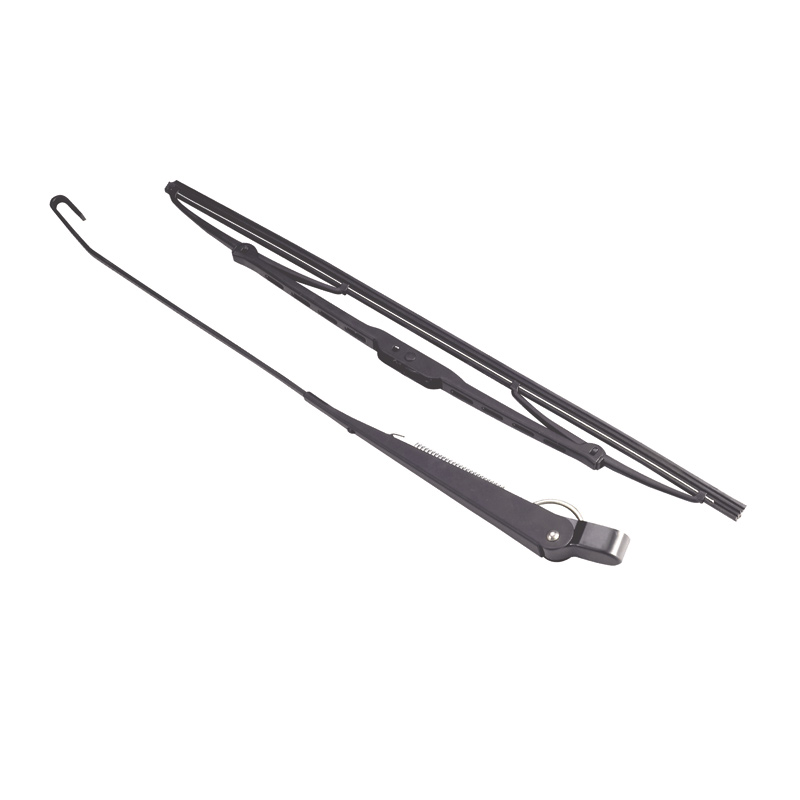

Wiper arm spec：300-500mm Customized
Wiper blade spec：300/350/400/450/500mm
Wiping angle：70°-110°Customized
Noise：≤60dB(A)
Application：Apply for construction machinery,special vehicles,trucks
Brake Torque：8N.m
Working Torque：1.3N.m
No-load speed：37±3r/min
Wiper arm spec：300-500mm Customized
Wiper blade spec：300/350/400/450/500mm
Wiping angle：70°-110°Customized
Noise：≤60dB(A)
Application：Apply for construction machinery,special vehicles,trucks
-
- Sectorial I
-
- Sectorial II
| Technical data | |
| Model | ZD1231/ZD2231 |
| Rated Volt. | 12V/24V |
| Brake Torque | 8N.m |
| Working Torque | 1.3N.m |
| No-load speed | 37±3r/min |
| Wiper arm spec. | 300-500mm Customized |
| Wiper blade spec. | 300/350/400/450/500mm |
| Wiping angle | 70°-110° Customized |
| Noise | ≤60dB(A) |
| Application | Apply for construction machinery,special vehicles,trucks |
