BAIXIANG MOTOR CO.,LTD.
ZD1430B-TM/ZD2430B-TM
Rated Volt：12V/24V
Brake Torque：38N.m
Working Torque：7N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-650mm Customized
Wiper blade spec：300/350/400/450/500/550/600/650mm
Wiping angle：40°-95° Customized
Noise：≤65dB(A)
Application：Apply for construction machinery,special vehicles,trucks
Brake Torque：38N.m
Working Torque：7N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-650mm Customized
Wiper blade spec：300/350/400/450/500/550/600/650mm
Wiping angle：40°-95° Customized
Noise：≤65dB(A)
Application：Apply for construction machinery,special vehicles,trucks
-

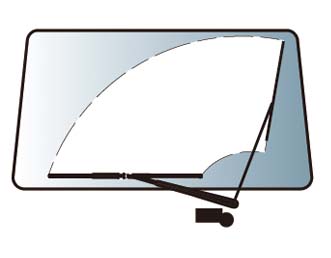

- Sectorial l
-

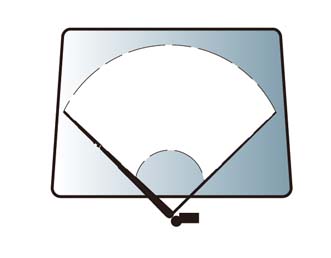

- Sectorial ll
-

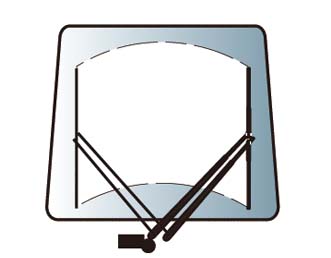

- Parellel movement
| Technical data | |
| Model | ZD1430B/ZD2430B |
| Rated Volt. | 12V/24V |
| Brake Torque | 38N.m |
| Working Torque | 7N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 300-650mm Customized |
| Wiper blade spec. | 300/350/400/450/500/550/600/650mm |
| Wiping angle | 40°-95° Customized |
| Noise | ≤65dB(A) |
| Application | Apply for construction machinery,special vehicles,trucks |
