BAIXIANG MOTOR CO.,LTD.

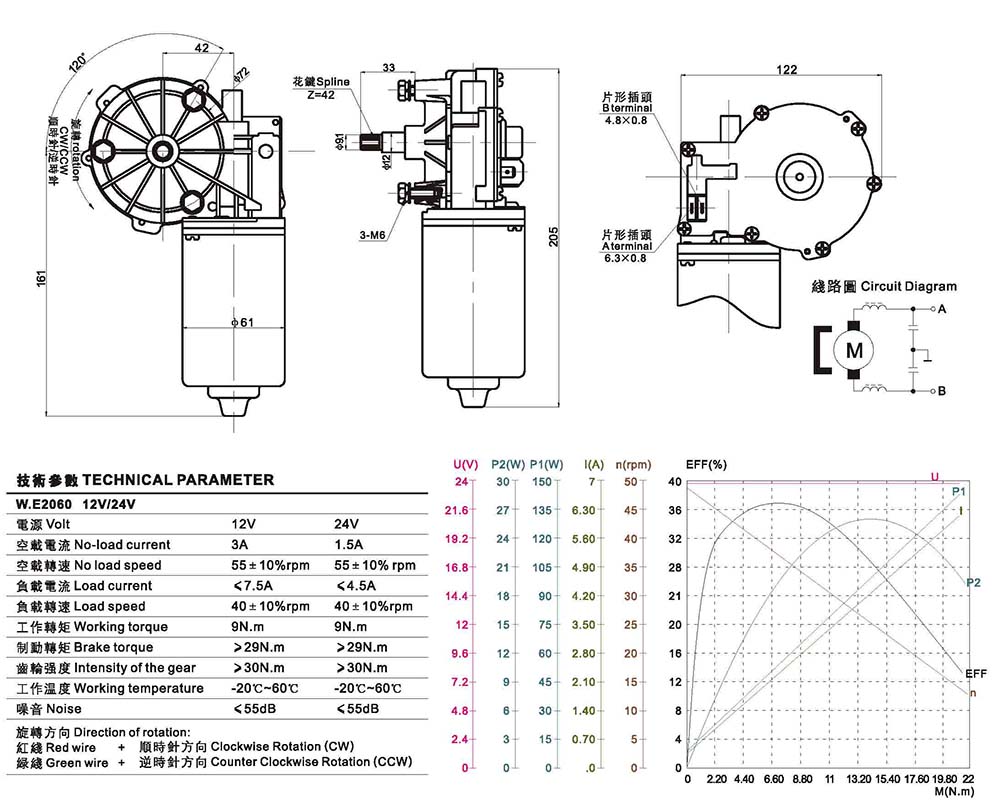

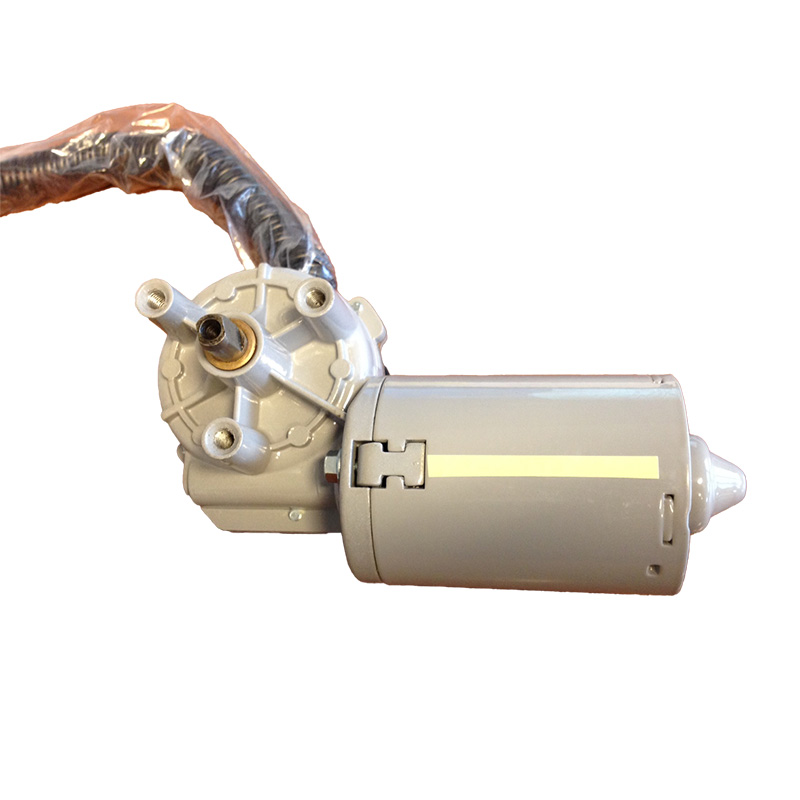

W.E1060/W.E2060
Voltage：12V/24V
Test Voltage：13.5V/27V
Brake torque：50N.m
Working torque：8.5N.m
No-load speed：55±5rpm
No-load current：≤3A/≤1.5A
Working speed：40±5rpm
Working current：≤7.5A/ ≤4.5A
Noise：≤55dB(A)
Direction of rotation: Red wire+Clockwise Rotation( CW)
Green wire + Counter Clockwise Rotation(CCW
Test Voltage：13.5V/27V
Brake torque：50N.m
Working torque：8.5N.m
No-load speed：55±5rpm
No-load current：≤3A/≤1.5A
Working speed：40±5rpm
Working current：≤7.5A/ ≤4.5A
Noise：≤55dB(A)
Direction of rotation: Red wire+Clockwise Rotation( CW)
Green wire + Counter Clockwise Rotation(CCW
