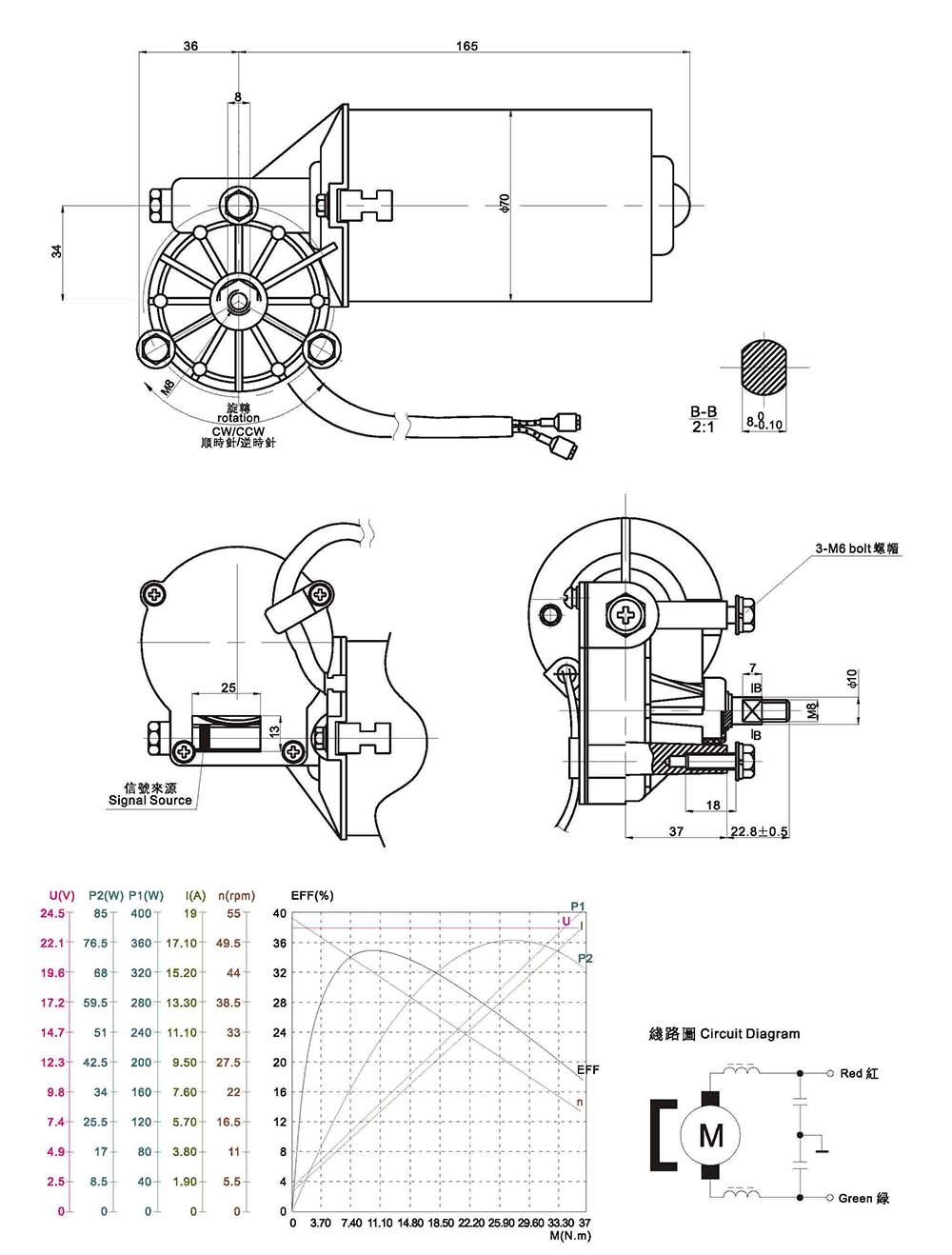

W.E1051R/W.E2051R
Volt:12V/24V
No-load current:≤3A/≤2A
No load speed:50±10%rpm/
Load current:≤10A/≤5A
Load speed:40±10%rpm
Working torque:8N.m
Brake torque:≥29N.m
Intensity of the gear:≥18N.m
Working temperature:-20℃~60℃
Noise:≤55dB
Direction of rotation: Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
No-load current:≤3A/≤2A
No load speed:50±10%rpm/
Load current:≤10A/≤5A
Load speed:40±10%rpm
Working torque:8N.m
Brake torque:≥29N.m
Intensity of the gear:≥18N.m
Working temperature:-20℃~60℃
Noise:≤55dB
Direction of rotation: Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
Volt | 12V | 24V |
No-load current | ≤3A | ≤2A |
No load speed | 50±10%rpm | 50±10% rpm |
Load current | ≤10A | ≤5A |
Load speed | 40±10%rpm | 40±10%rpm |
Working torque | 8N.m | 8N.m |
Brake torque | ≥29N.m | ≥29N.m |
Intensity of the gear | ≥18N.m | ≥18N.m |
Working temperature | -20℃~60℃ | -20℃~60℃ |
Noise | ≤55dB | ≤55dB |
Direction of rotation: Red wire+ Clockwise Rotation (CW) Green wire+ Counter Clockwise Rotation(CCW) |
