BAIXIANG MOTOR CO.,LTD.
ZD1333/ZD2333
Rated Volt：12V/24V
Brake Torque：25N.m
Working Torque：5N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arn spec：300-550mm Customized
Wiper blacle spec：300/350/400/450/500/550mm
Wiping angle：35°-105° Customized
Noise：≤60dB(A)
Application：Apply for Agricultural Machinery
Brake Torque：25N.m
Working Torque：5N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arn spec：300-550mm Customized
Wiper blacle spec：300/350/400/450/500/550mm
Wiping angle：35°-105° Customized
Noise：≤60dB(A)
Application：Apply for Agricultural Machinery
-

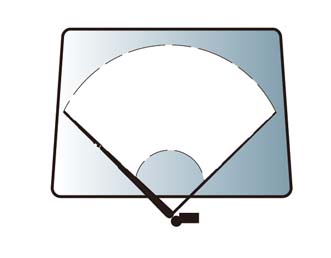

- Sectorial l
-

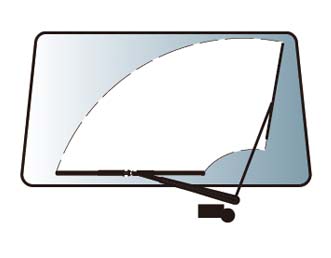

- Sectorial ll
-

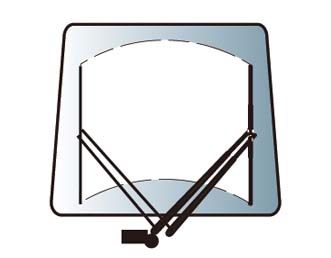

- Parellel movement
| Technical data | |
| Model | ZD1333/ZD2333 |
| Rated Volt. | 12V/24V |
| Brake Torque | 25N.m |
| Working Torque | 5N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arn spec. | 300-550mm Customized |
| Wiper blacle spec. | 300/350/400/450/500/550mm |
| Wiping angle | 35°-105° Customized |
| Noise | ≤60dB(A) |
| Application | Apply for Agricultural Machinery |
