BAIXIANG MOTOR CO.,LTD.
WEM1530C-TM-Ⅱ/WEM2530C-TM-Ⅱ
Rated Volt：12V/24V
Brake Torque：42N.m
Working Torque：8N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-800mm Customized
Wiper blade spec：300/350/400/450/500/550/600/650/700/800mm
Wiping angle：45°-90° Customized
Noise：≤65dB(A)
Application：Apply for yacht, naval vessel,special vehicles
Brake Torque：42N.m
Working Torque：8N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-800mm Customized
Wiper blade spec：300/350/400/450/500/550/600/650/700/800mm
Wiping angle：45°-90° Customized
Noise：≤65dB(A)
Application：Apply for yacht, naval vessel,special vehicles
-

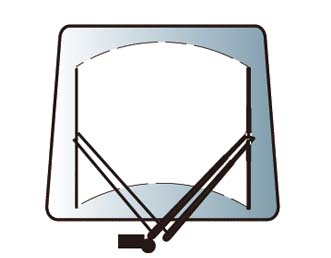

- Parellel movement
| Technical data | |
| Model | ZD1530C/ZD2530C |
| Rated Volt. | 12V/24V |
| Brake Torque | 42N.m |
| Working Torque | 8N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 300-800mm Customized |
| Wiper blade spec. | 300/350/400/450/500/550/600/650/700/800mm |
| Wiping angle | 45°-90° Customized |
| Noise | ≤65dB(A) |
| Application | Apply for yacht, naval vessel,special vehicles |
