BAIXIANG MOTOR CO.,LTD.
WEM1230BAC/WEM2230BAC
Rated Volt：12V/24V
Brake Torque：7N.m
Working Torque：1N.m
No-load speed ：L-Speed 30±5r/min H-Speed 45±5r/min

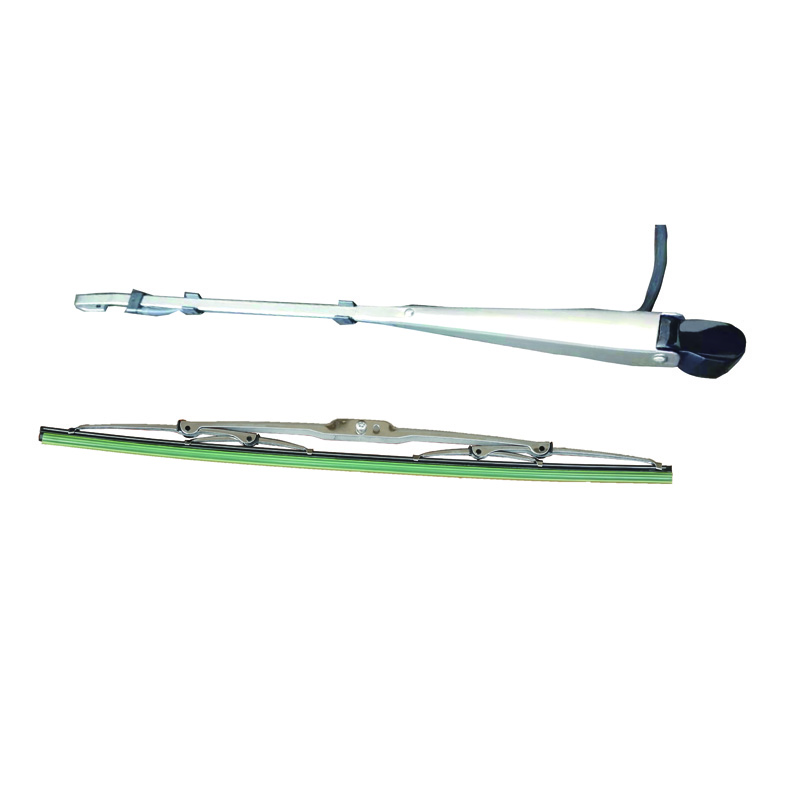

Wiper arm spec：300-500mm Customized
Wiper blade spec：300/350/400/450/500mm
Wiping angle：60°-135°Customized
Noise：≤60dB(A)
Application： Apply for yacht, naval vessel,special vehicles
Brake Torque：7N.m
Working Torque：1N.m
No-load speed ：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-500mm Customized
Wiper blade spec：300/350/400/450/500mm
Wiping angle：60°-135°Customized
Noise：≤60dB(A)
Application： Apply for yacht, naval vessel,special vehicles
-

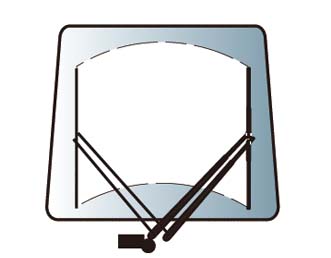

- Sectorial l
-
- Sectorial ll
-
- Parellel movement
| Technical data | |
| Model | WEM1230BAC/WEM2230BAC |
| Rated Volt. | 12V/24V |
| BrakeTorque | 7N.m |
| Working Torque | 1N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 300-500mm Customized |
| Wiper blade spec. | 300/350/400/450/500mm |
| Wiping angle | 60°-135°Customized |
| Noise | ≤60dB(A) |
| Application | Apply for yacht, naval vessel,special vehicles |
