BAIXIANG MOTOR CO.,LTD.
WET017
P/N：ZD19530/29530/119530
Rated Volt：12V/24V/110V
No-load speed ：Auto:Auto adjust wiping speed according to the rainfall
L-Speed 30±5r/min H-Speed 45±5r/min

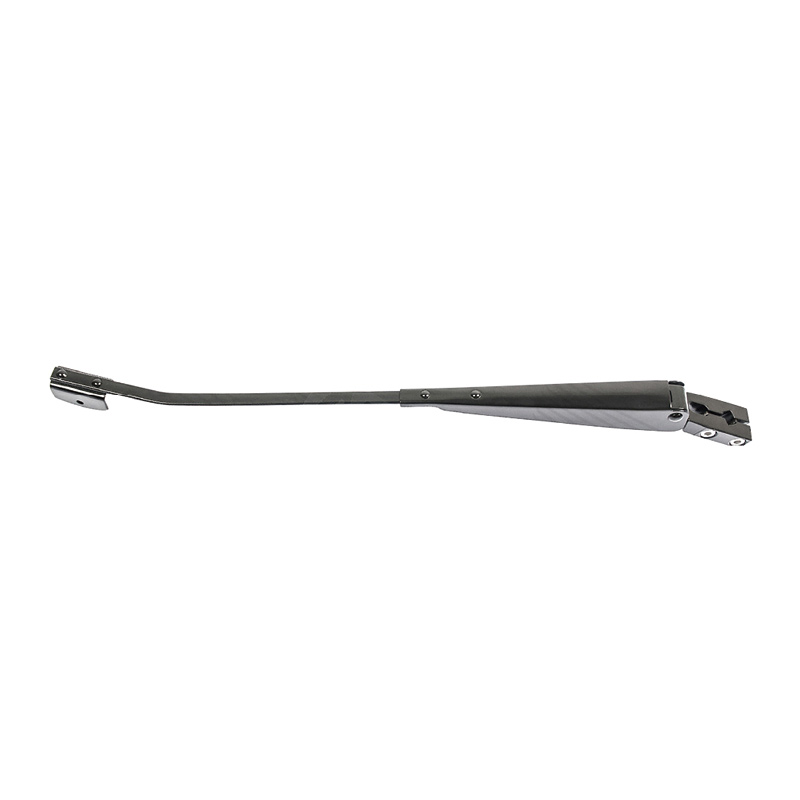

Wiper arm spec：800-600mm Customized

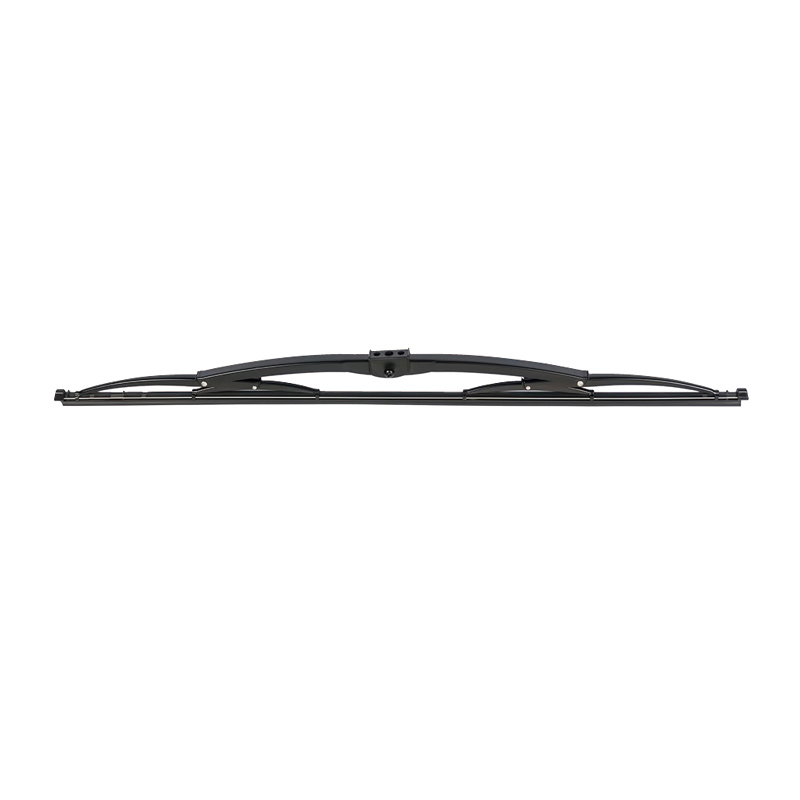

Wiper blade spec：800/700/600mm
Wiping angle：45°- 90°Customized
Product feature：Pantograph arn with adjustable tip force.
Single-driven.clamp arm head straight knurling
Hign liquid levcl:GN lighl on
Low liquid level:RD light on
Application：Apply for Metro ,Light Train
Rated Volt：12V/24V/110V
No-load speed ：Auto:Auto adjust wiping speed according to the rainfall
L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：800-600mm Customized
Wiper blade spec：800/700/600mm
Wiping angle：45°- 90°Customized
Product feature：Pantograph arn with adjustable tip force.
Single-driven.clamp arm head straight knurling
Hign liquid levcl:GN lighl on
Low liquid level:RD light on
Application：Apply for Metro ,Light Train
-

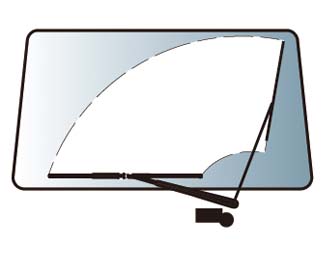

- Sectorial wiperll
| Technical data | |
| Model | WET017-Automatic wiper |
| P/N | ZD19530/29530/119530 |
| Rated Volt. | 12V/24V/110V |
| No-load speed | Auto:Auto adjust wiping speed according to the rainfall |
| L-Speed 30±5r/min | |
| H-Speed 45±5r/min | |
Wiper arm spec. | 800-600mm Customized |
| Wiper blade spec. | 800/700/600mm |
| Wiping angle | 45°- 90°Customized |
| Product feature | Pantograph arn with adjustable tip force. Single-driven.clamp arm head straight knurling Hign liquid levcl:GN lighl on Low liquid level:RD light on |
| Application | Apply for Metro ,Light Train |
