BAIXIANG MOTOR CO.,LTD.
WET002
P/N：ZD19530/29530/119530
Rated Volt：12V/24V/110V
No-load speed： L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：1000-700mm Customized

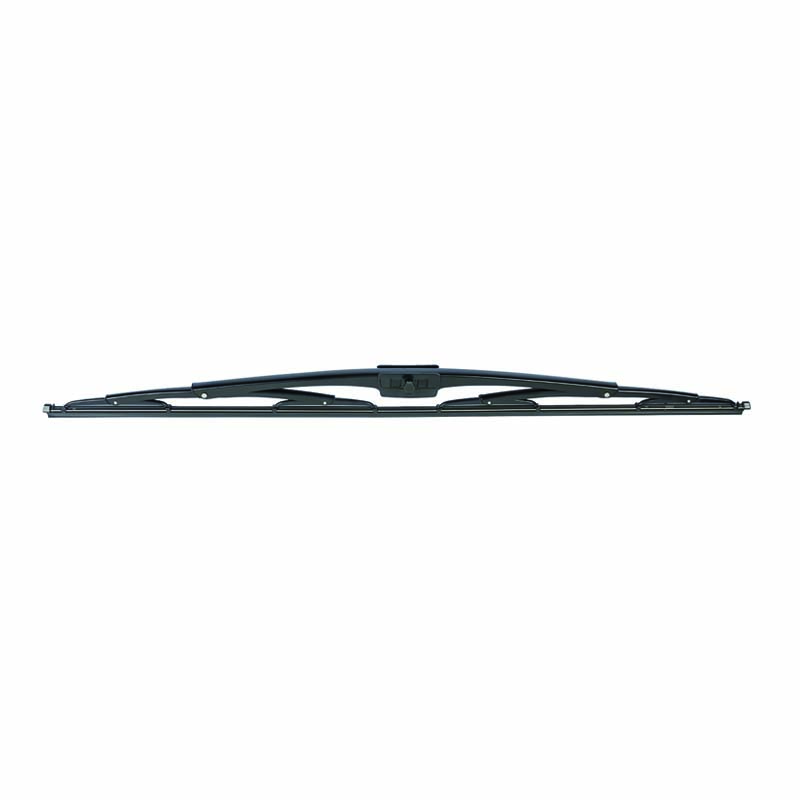

Wiper blade spec：1000/900/800/700/600mm
Wiping angle：45”-90°Customized

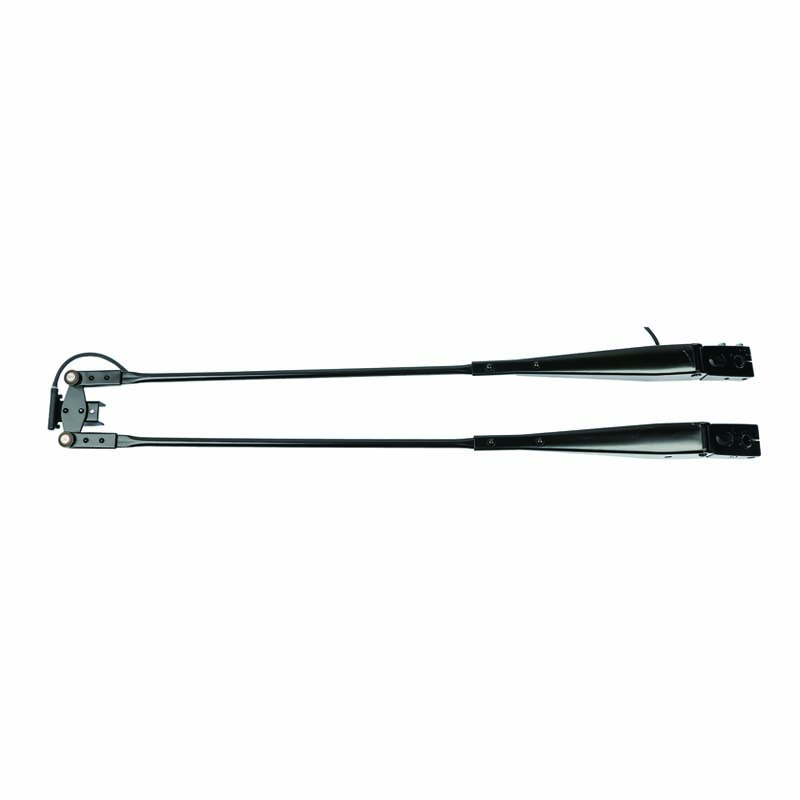

Product feature：Pantograph arm with adjustable tip force.
Dual-driven,clamp arm head straight knurling
Application：Apply for high speed trains
Rated Volt：12V/24V/110V
No-load speed： L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：1000-700mm Customized
Wiper blade spec：1000/900/800/700/600mm
Wiping angle：45”-90°Customized
Product feature：Pantograph arm with adjustable tip force.
Dual-driven,clamp arm head straight knurling
Application：Apply for high speed trains
-

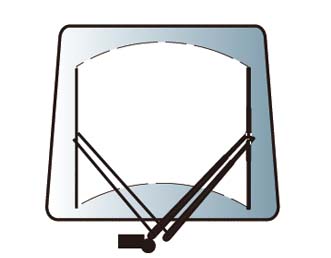

- Parellel movement
| Technical data | |
| Model | WET002 |
| P/N | ZD19530/29530/119530 |
| Rated Volt. | 12V/24V/110V |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 1000-700mm Customized |
| Wiper blade spec. | 1000/900/800/700/600mm |
| Wiping angle | 45”-90°Customized |
| Product feature | Pantograph arm with adjustable tip force. Dual-driven,clamp arm head straight knurling |
| Application | Apply for high speed trains |
