BAIXIANG MOTOR CO.,LTD.
ZD1330C/ZD2330C
Rated Volt：12V/24V
Brake Torque：18N.m
Working Torque：4N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-550mm Customized
Wiper blade spec：300/350/400/450/500/550mm
Wiping angle：40°-105° Customized
Noise：≤60dB(A)
Application：Apply for construction machinery,special vehicles,trucks
Brake Torque：18N.m
Working Torque：4N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：300-550mm Customized
Wiper blade spec：300/350/400/450/500/550mm
Wiping angle：40°-105° Customized
Noise：≤60dB(A)
Application：Apply for construction machinery,special vehicles,trucks
-

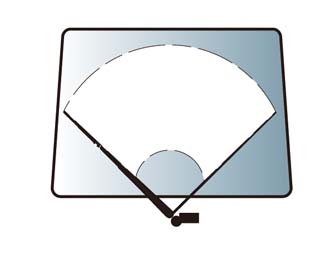

- Sectorial l
-

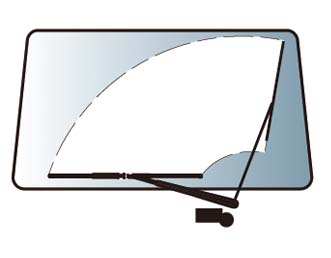

- Sectorial ll
-

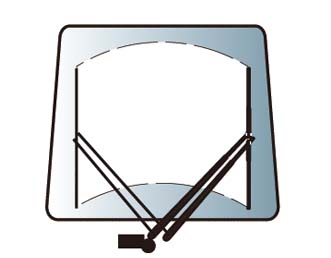

- Parellel movement
| Technical data | |
| Model | ZD1330C/ZD2330C |
| Rated Volt. | 12V/24V |
| Brake Torque | 18N.m |
| Working Torque | 4N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 300-550mm Customized |
| Wiper blade spec. | 300/350/400/450/500/550mm |
| Wiping angle | 40°-105° Customized |
| Noise | ≤60dB(A) |
| Application | Apply for construction machinery,special vehicles,trucks |
