BAIXIANG MOTOR CO.,LTD.

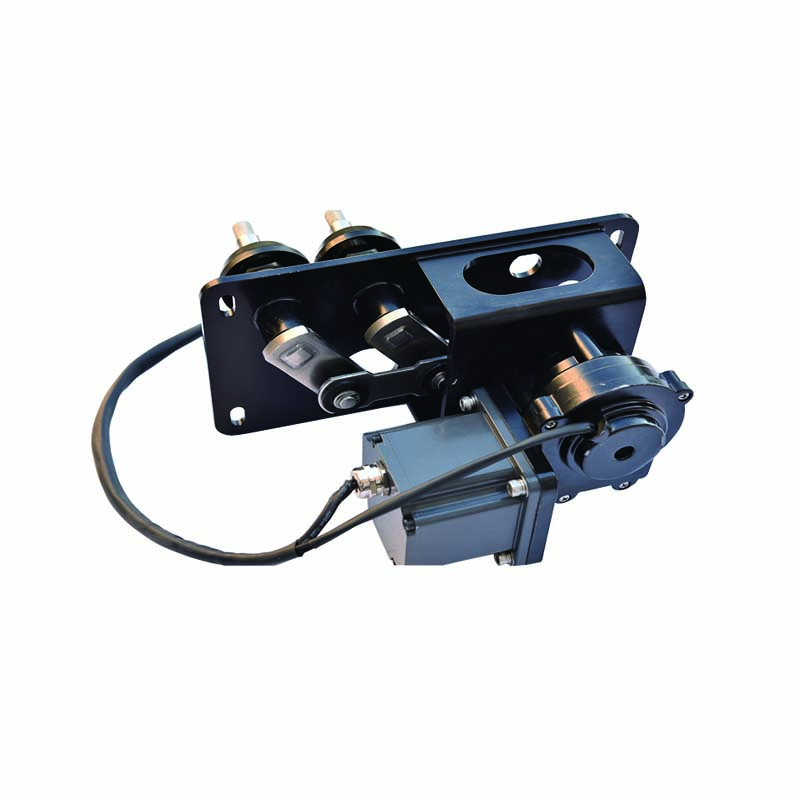

WET016
P/N：BL120L11-050
Raled Volt.：110V
No-load speed：Long interval 7±1r/min Long interval 15±2r/min
L-Speed 30 ±5r/min H-Speed 45±5r/min
Wiper arm spec：1000-700mm Customized
Wiper blade spec：1000/900/800/700/600mm
Wiping angle：45°-90°Customized
Product feature：IP66

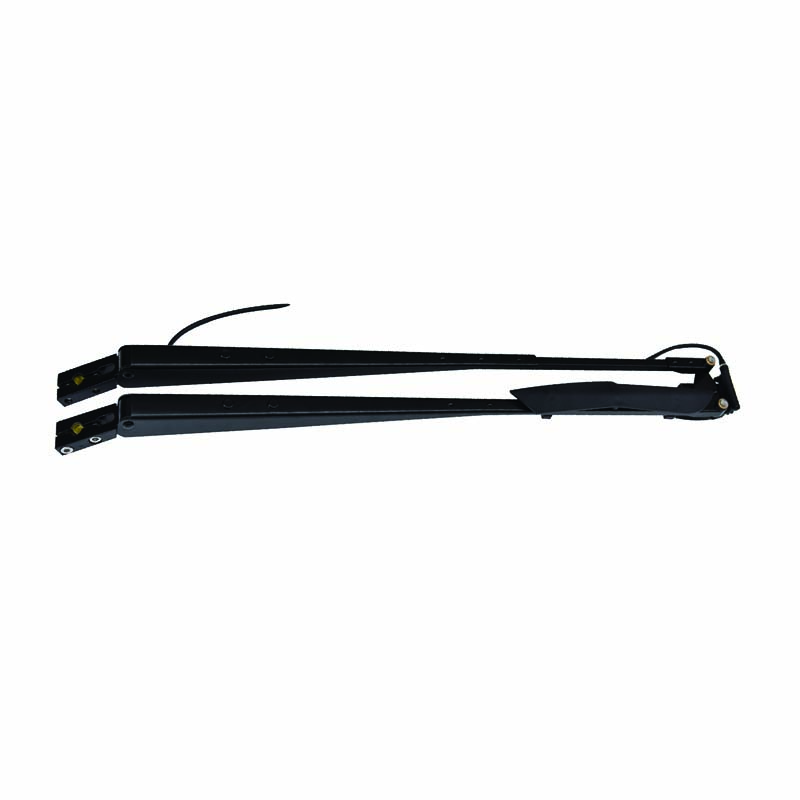

Pantograph arm with adjustable tip force.Dual-driven,clamp arm head straight knurling
Wiper arm with anti-lift plate , synchronized wiper with selection switch
Application：Apply for Metro , Light Train
Raled Volt.：110V
No-load speed：Long interval 7±1r/min Long interval 15±2r/min
L-Speed 30 ±5r/min H-Speed 45±5r/min
Wiper arm spec：1000-700mm Customized
Wiper blade spec：1000/900/800/700/600mm
Wiping angle：45°-90°Customized
Product feature：IP66
Pantograph arm with adjustable tip force.Dual-driven,clamp arm head straight knurling
Wiper arm with anti-lift plate , synchronized wiper with selection switch
Application：Apply for Metro , Light Train
-

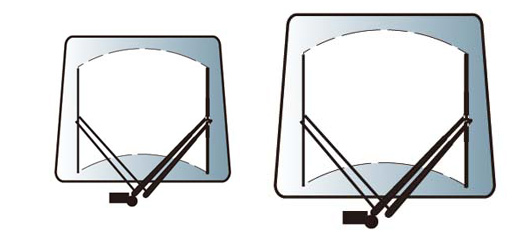

- Parellel movement (synchronization )
| Technical data | |
| Model | WET016 Brushless motor synchronous wiper |
| P/N | BL120L11-050 |
| Raled Volt. | 110V |
| No-load speed | Long interval 7±1r/min |
| Long interval 15±2r/min | |
| L-Speed 30 ±5r/min | |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 1000-700mm Customized |
| Wiper blade spec. | 1000/900/800/700/600mm |
| Wiping angle | 45°-90°Customized |
| Product feature | IP66 Pantograph arm with adjustable tip force.Dual-driven,clamp arm head straight knurling Wiper arm with anti-lift plate , synchronized wiper with selection switch |
| Application | Apply for Metro , Light Train |
